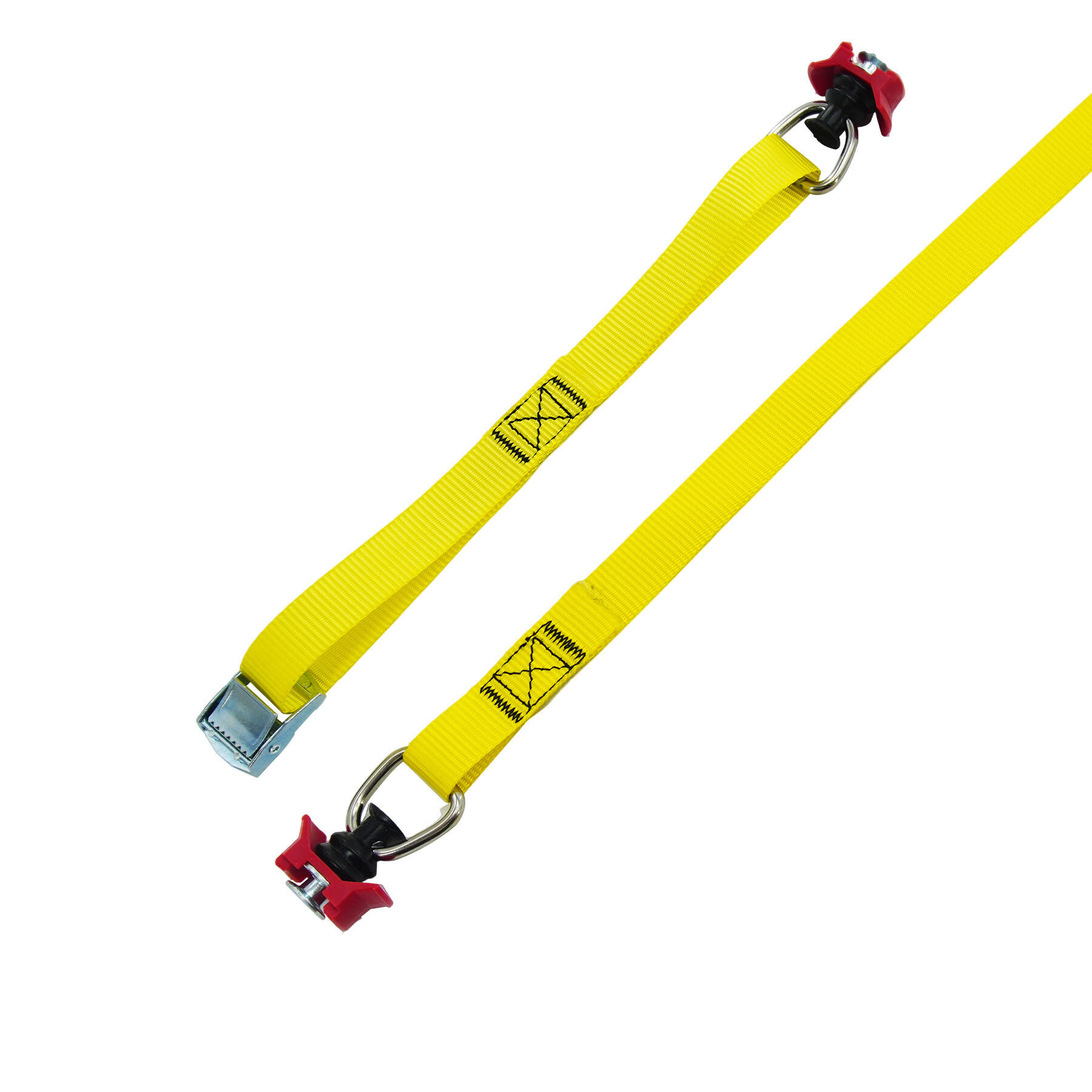

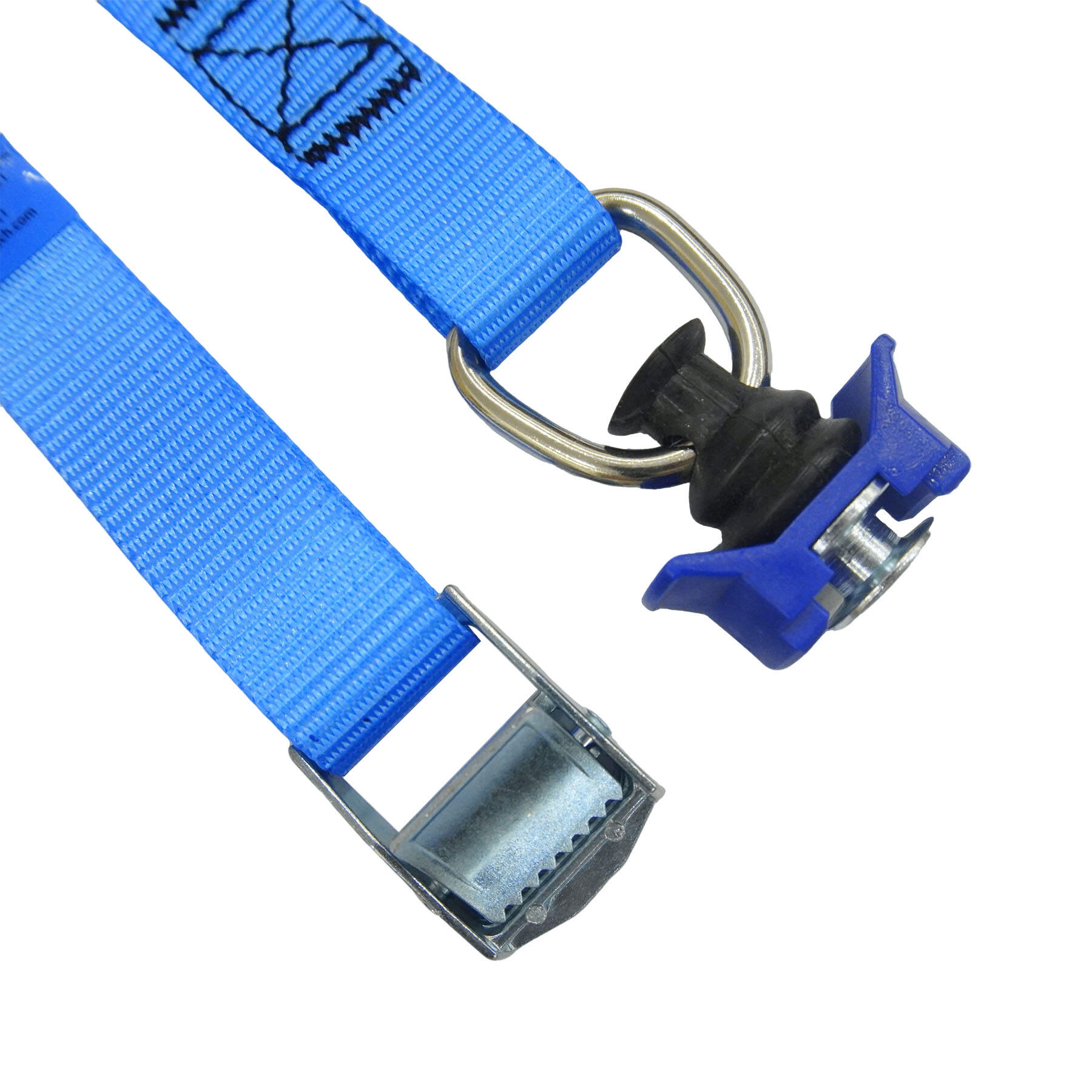

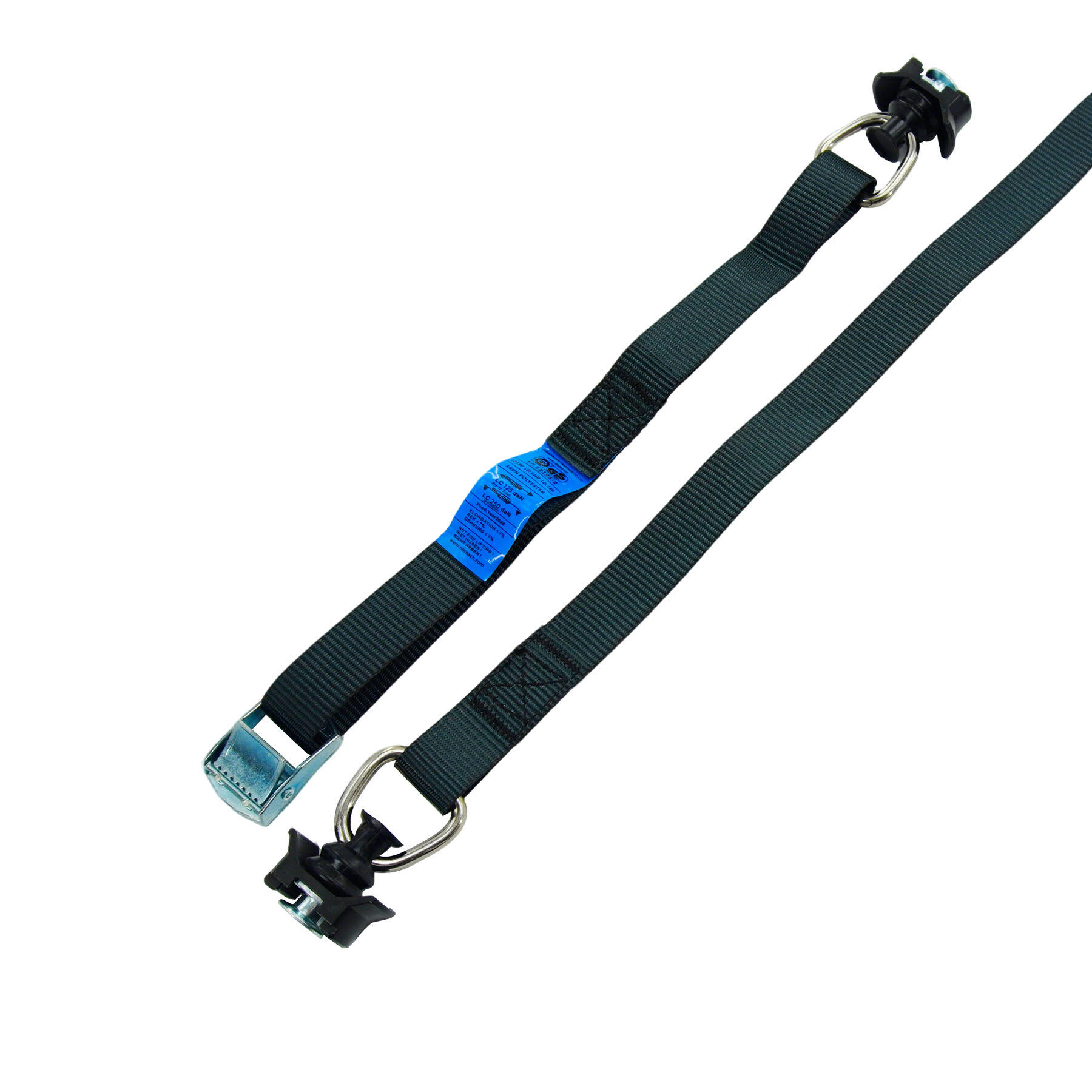

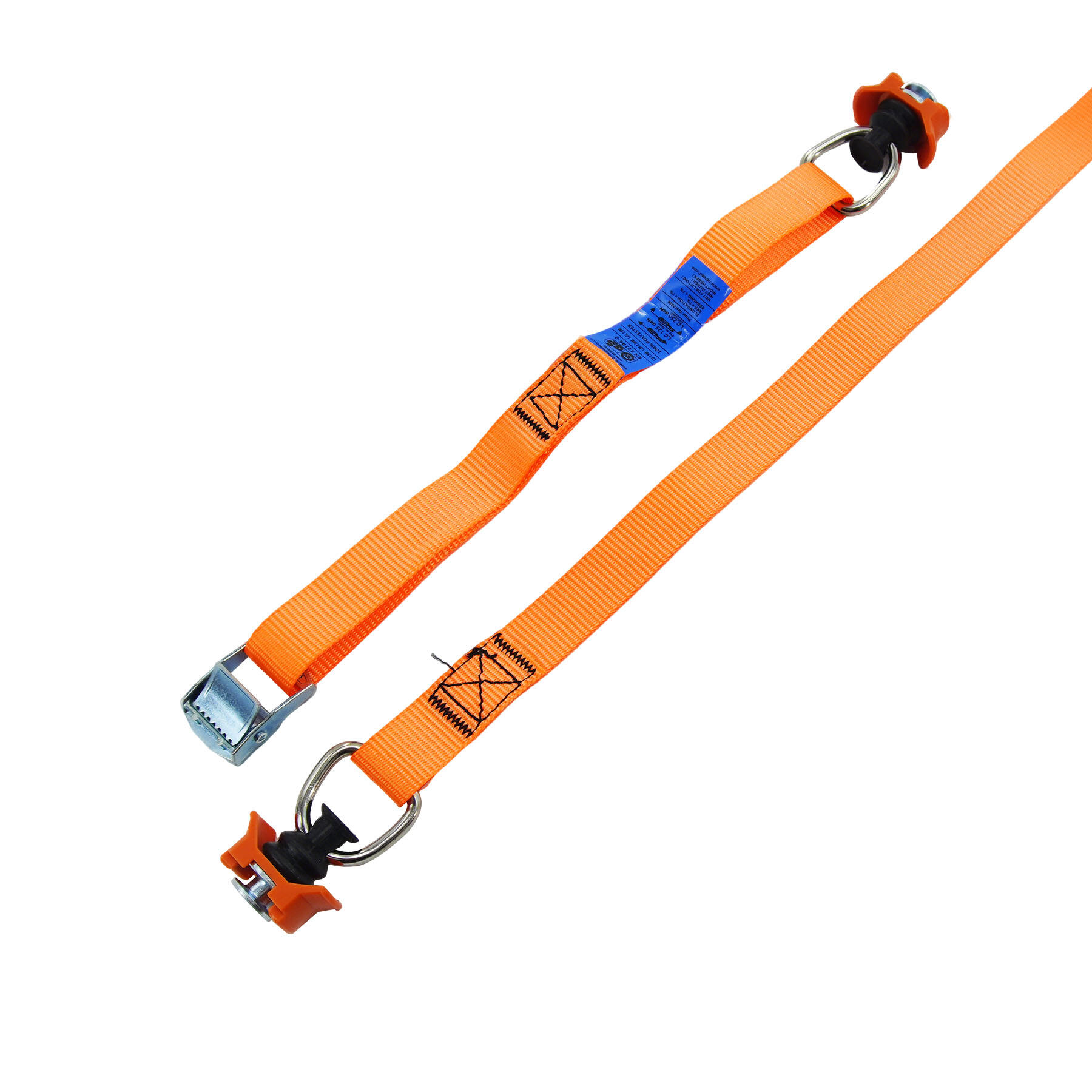

1" L-Track Cam Buckle Tie Down Straps with L track Fittings

1" L-Track Cam Buckle Tie Down Straps | Heavy Duty Cargo Control for RV, Trailer & Truck

  • Cam Buckle Breaking Strength:220kg / 485lbs
  • Single Stud Fitting Breaking Strength: 3500lbs / 1580kg
  • Width:25mm / 1in
  • Total Length:3m / 9.84ft
  • Short Strap Length:0.3m / 11.81in
  • Long Strap Length:2.7m / 8.86ft

NO MOQ

500+ PCS, Custom supported

Contact Us | Best Price & Custom Solutions

Brand:
NBREACH
Spu:
RLTS011
Color:
Length:
Inquiry
  • Overview
  • Recommended Products

General Questions

Q1: What is an L-Track cam buckle strap with single stud fittings?
A: It is a heavy-duty cargo tie-down strap designed exclusively for L-Track (airline track / logistic track) systems. Equipped with single stud metal fittings and a cam buckle, it provides fast, tool-free load securing for vans, trailers, trucks, and RVs. Compared with hook-style straps, single stud fittings lock firmly into the track without slipping or falling out.
Q2: What are the dimensions of this strap?
A: Standard size: 1” (25mm) in width and 9.84ft (3m) in total length. Dual unit labeling fits both US imperial markets and EU/global metric markets, fully compliant with international cargo accessory standards.
Q3: What material is the webbing made of?

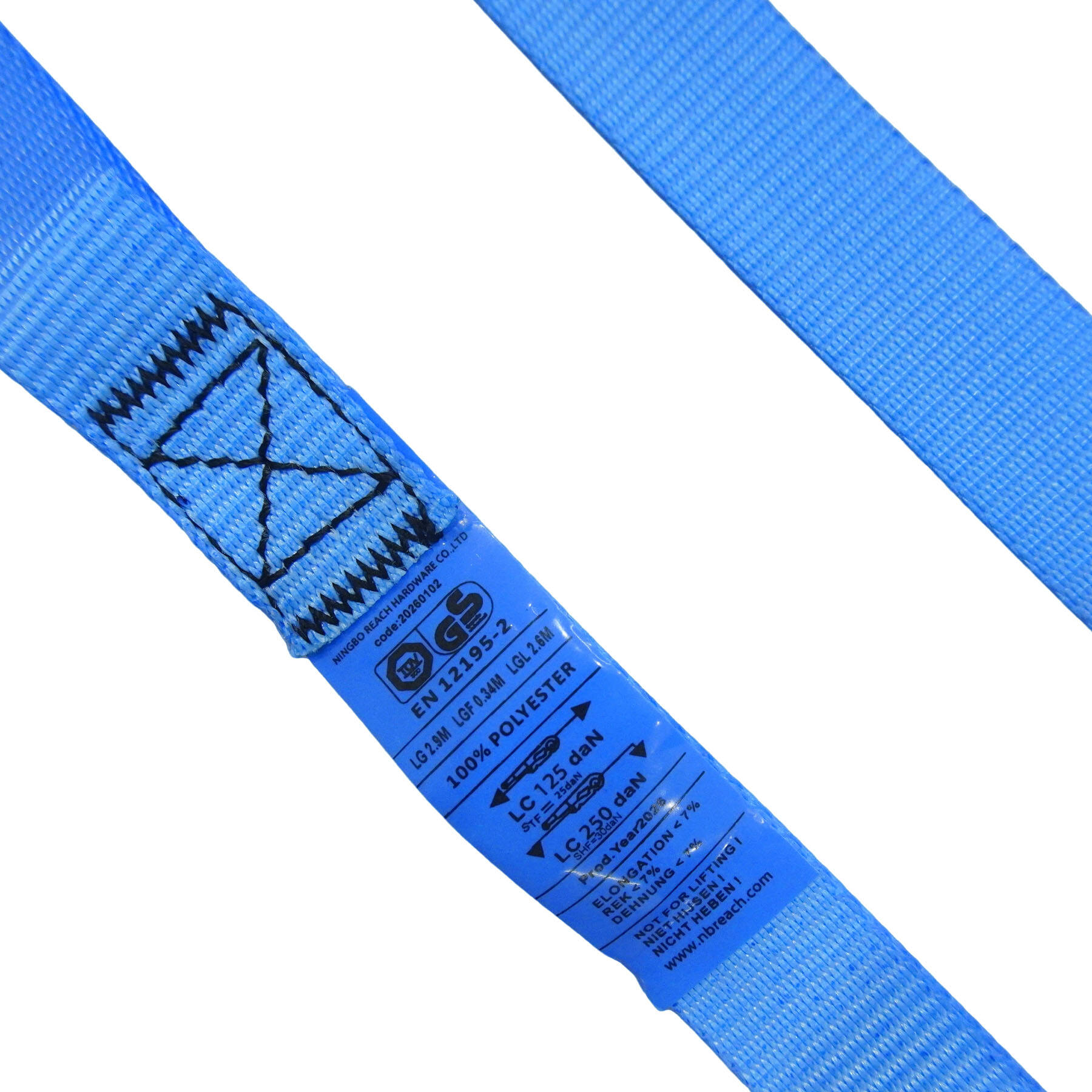

A: High-tensile 100% polyester webbing. It features excellent UV resistance, low stretch, wear resistance, and water resistance, suitable for long-term indoor and outdoor cargo fixation scenarios.

Load Capacity & Safety

Q4: What is the working load limit and breaking strength?
A: Standard 1-inch single stud L-Track cam strap: Working Load Limit (WLL) 75kg / 165lbs, minimum breaking strength 220kg / 485lbs. Cam buckle tension is stable and uniform, ideal for medium-light load fixation.
Q5: Can cam buckle straps hold heavy loads like ratchet straps?
A: No. Cam buckle straps are designed for stable, non-over-tension cargo (furniture, boxes, RV equipment, light machinery). They are safer for fragile loads that cannot bear excessive clamping force. For heavy cargo and long-distance highway transportation, ratchet L-Track straps are recommended.

Compatibility & Installation

Q6: Will the single stud fittings fit all L-Track rails?
A: Yes. The single stud fittings follow universal industry standards, compatible with all standard L-Track / Airline Track / Logistic Track installed in box trucks, cargo vans, trailers, and RVs. No modification is needed.
Q7: What is the difference between L-Track single stud and double stud straps?
A: Single stud is more flexible for short-distance adjustment and multi-angle fixation, suitable for scattered and small-area cargo. Double stud offers stronger horizontal stability for large flat cargo. Single stud is the most versatile and best-selling option for daily use.
Q8: How to install and tension the cam buckle strap?

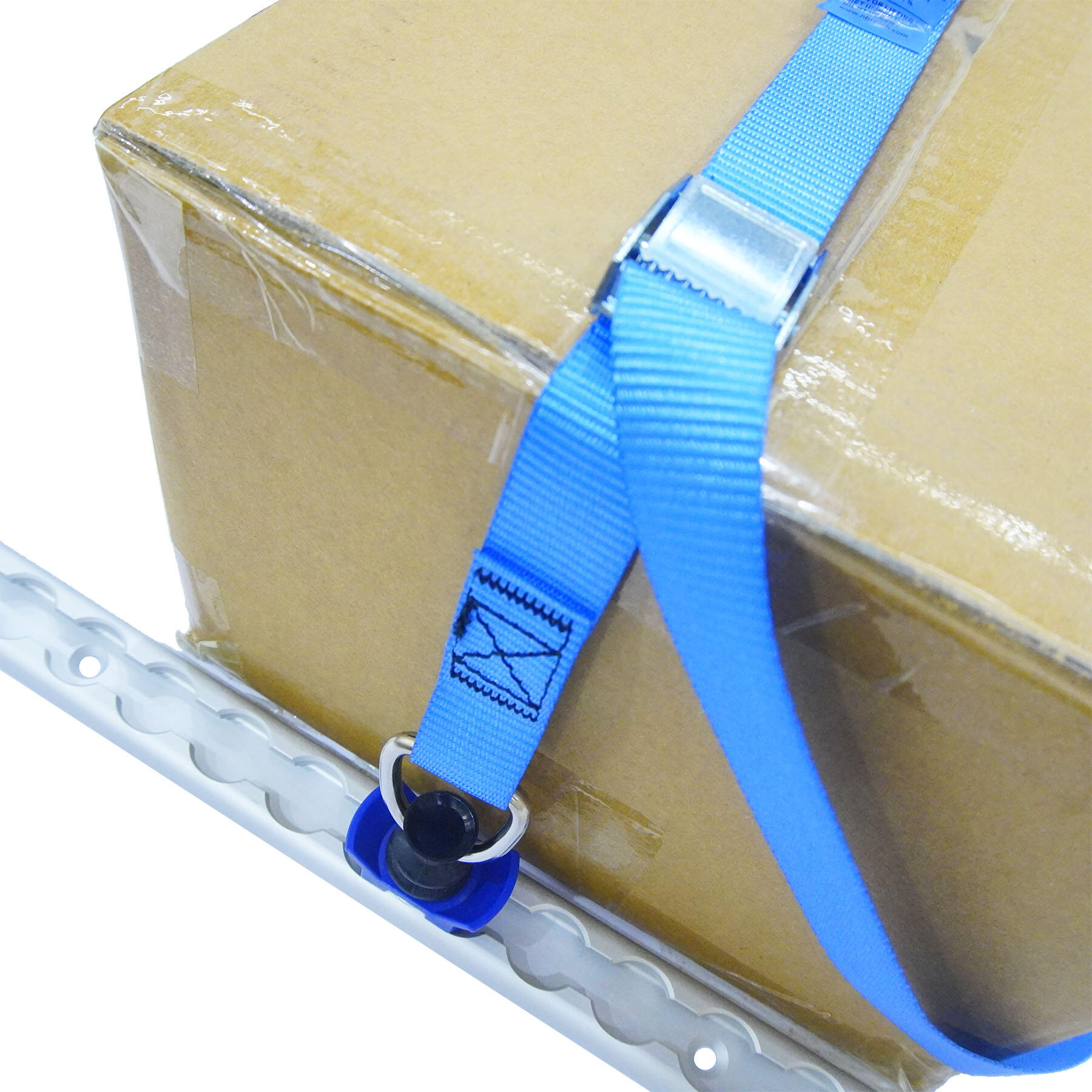

A: 1) Snap the single stud fitting into the L-Track slot ; 2) Thread the webbing through the cam buckle; 3) Pull the loose end to tighten the load; 4) Close the cam buckle to lock. Release by lifting the cam lever gently. No tools required for fast operation.

Durability & Maintenance

Q9: How to maintain and store the straps?
A: Keep the straps dry and clean; avoid contact with sharp edges, high-temperature objects, and corrosive chemicals. Fold and store in a ventilated place after use. Do not leave them exposed to the sun for a long time.
Q10: When should I replace the tie-down straps?
A: Replace immediately if you find fraying, cracking, webbing thinning, buckle deformation, or fitting looseness, to avoid safety risks during transportation.

Custom & Packaging

Q11: Do you support custom lengths, colors or logos?
A: Yes. We support customized strap lengths, webbing colors, printed logos, and private packaging to meet wholesale, retail and brand customization needs.
Q12: What’s your MOQ for wholesale orders?
A: Low MOQ is available for bulk orders. Please contact us for detailed wholesale pricing and customization solutions.

Shipping & After-sales

Q13: Do you provide global shipping?
A:Yes, we support global shipping. Contact us to get a professional shipping solution.
Q14: What if the products have quality problems?
A: We provide professional after-sales service for defective products. All straps are strictly tested before shipment to ensure stable quality.
